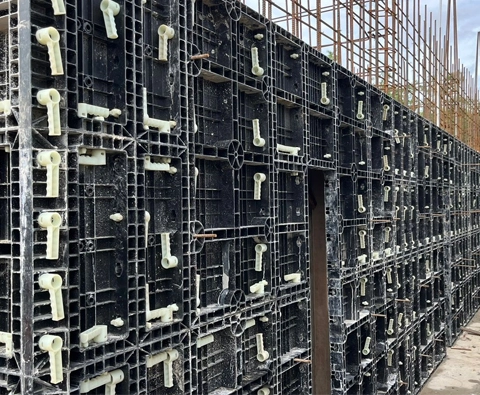

Plastic Formwork is a kind of mold made using high-quality plastic. It is generally infused with toughened fiberglass in order to reinforce the load-bearing capacity of the material. Plastic Formwork carries loads of poured concrete until the concrete is dry and ready to stand by itself. It can be used to concrete columns, pillars, walls, plinths, and foundations directly on-site.
The panels are lightweight and very robust. For those who share similar structure projects, seeking low-cost, mass housing schemes, plastic formwork is definitely the best choice for you. Their modular design satisfies all sorts of construction and planning needs such as columns and pillars of different shapes and dimensions, walls and foundations of different thicknesses and heights. Plastic formwork are very light in comparison with the traditional wood panels. Moreover, the plastic material they are made of allows the concrete not to stick. After stripping the plastic formwork when the concrete is dry, it can be easily cleaned with just a little water.
Testing | Unit | Data | Standard |
Water absorption | % | 0.009 | JG/T 418 |
Shore hardness | H | 77 | JG/T 418 |
Impact strength | KJ/㎡ | 26-40 | JG/T 418 |
Flexural strength | MPa | ≥100 | JG/T 418 |
Elastic modulus | MPa | ≥4950 | JG/T 418 |
Vicat softening | ℃ | 168 | JG/T 418 |
Flame retardant | ≥E | JG/T 418 | |
Density | kg/㎡ | ≈15 | ---- |
Modular and versatile on-site.
Patented handles in nylon for an excellent locking of the panels.
Easy dismantling and quick cleansing just with water.
High resistance (60 kn/m2) and duration of the panels.
