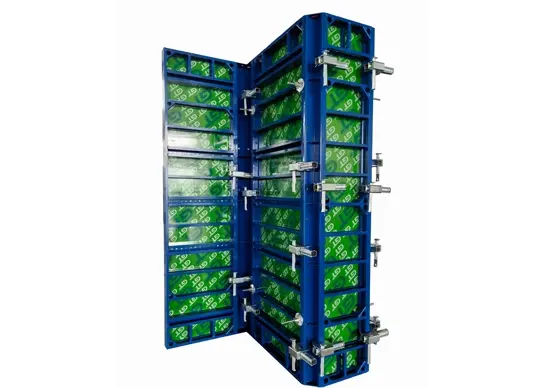

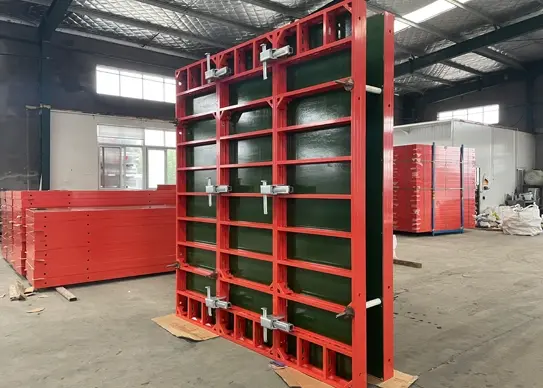

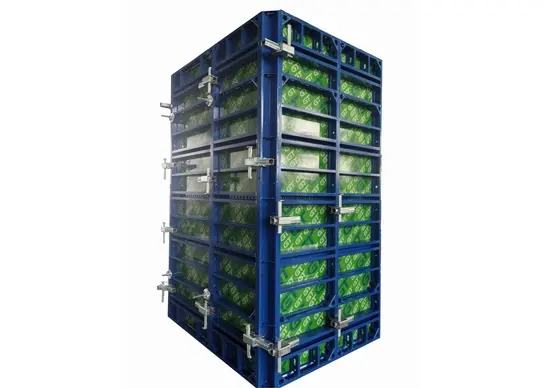

The Aluminum Frame Formwork, a frame formwork system consisting of 6061-T6 aluminum alloy frame and 15 mm plywood, is ideal for vertical construction projects. With various standard panel sizes, assembling and disassembling can be achieved in an extremely short period without compromising on quality while allowing for immediate cost savings. The Aluminum Frame Formwork is designed for an allowable concrete pressure of 60 KN/㎡, the panel is manufactured with high-strength aluminum extrusion profiles and is suitable for man-handling, and they can be assembled easily with clamps without alignment walers.

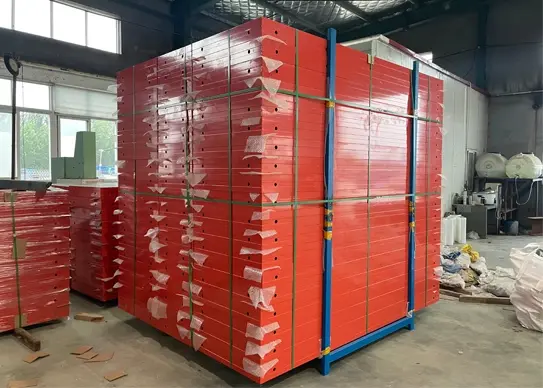

All panels are powder-coated to enhance their lifespan and available in steel as an alternative.
The high-strength and lightweight panels come in heights of 3000, 2500 & 1250 mm with four standard widths of 1000, 750, 500 & 250 mm. With a total of 12 standard sizes to choose from, you will benefit from a high utilization rate with lesser inventory parts.
Dimension | Options |
Panel Height | 3000 mm, 2500 mm, 1250 mm |
Panel Width | 1000 mm, 750 mm, 500 mm, 250 mm |
Total Configurations | 12 standard configurations |
Lightweight, can be moved by hand:
The panels are lightweight, enabling easy manual movement and reducing labor demands.
User-Friendly Assembly:
Equipped with adjustable steel clamps, the system ensures quick and straightforward assembly.
Superior Surface Finish:
The formwork delivers a high-quality concrete surface finish upon removal, enhancing the project's aesthetic appeal.
High Load Capacity:
Capable of withholding fresh concrete pressures up to 60 KN/㎡, ensuring structural integrity.
Long-Lasting Durability:
Panels are designed for multiple reuse cycles, offering long-term value and minimizing material waste.
Ease of Use:
The system is intuitive, allowing even less-experienced laborers to operate it efficiently with minimal training.
